← All Event GuidesLED Screen Size and Spec Guide
Compare our three mobile LED screens side by side, find the right size for your crowd, and see what your venue needs before the trailer rolls in.
🌞 Why Mobile LED
A mobile LED screen is a real video wall on a trailer, not a projector. It stays bright and sharp at high noon, runs on its own power, and has sound built in. Anywhere a trailer fits, we can run a screen.
✅ Every Screen Includes
- Daylight bright video. Crisp picture at noon or after dark.
- Onboard generator. Nothing needed from your venue.
- Built-in speaker system. Premium sound and wireless mics are available upgrades.
- Plays anything. Movies, live sports, streaming, slideshows, sponsor graphics and live camera feeds through HDMI or SDI.
- Delivery, setup and a full walkthrough. Ready before your guests arrive.

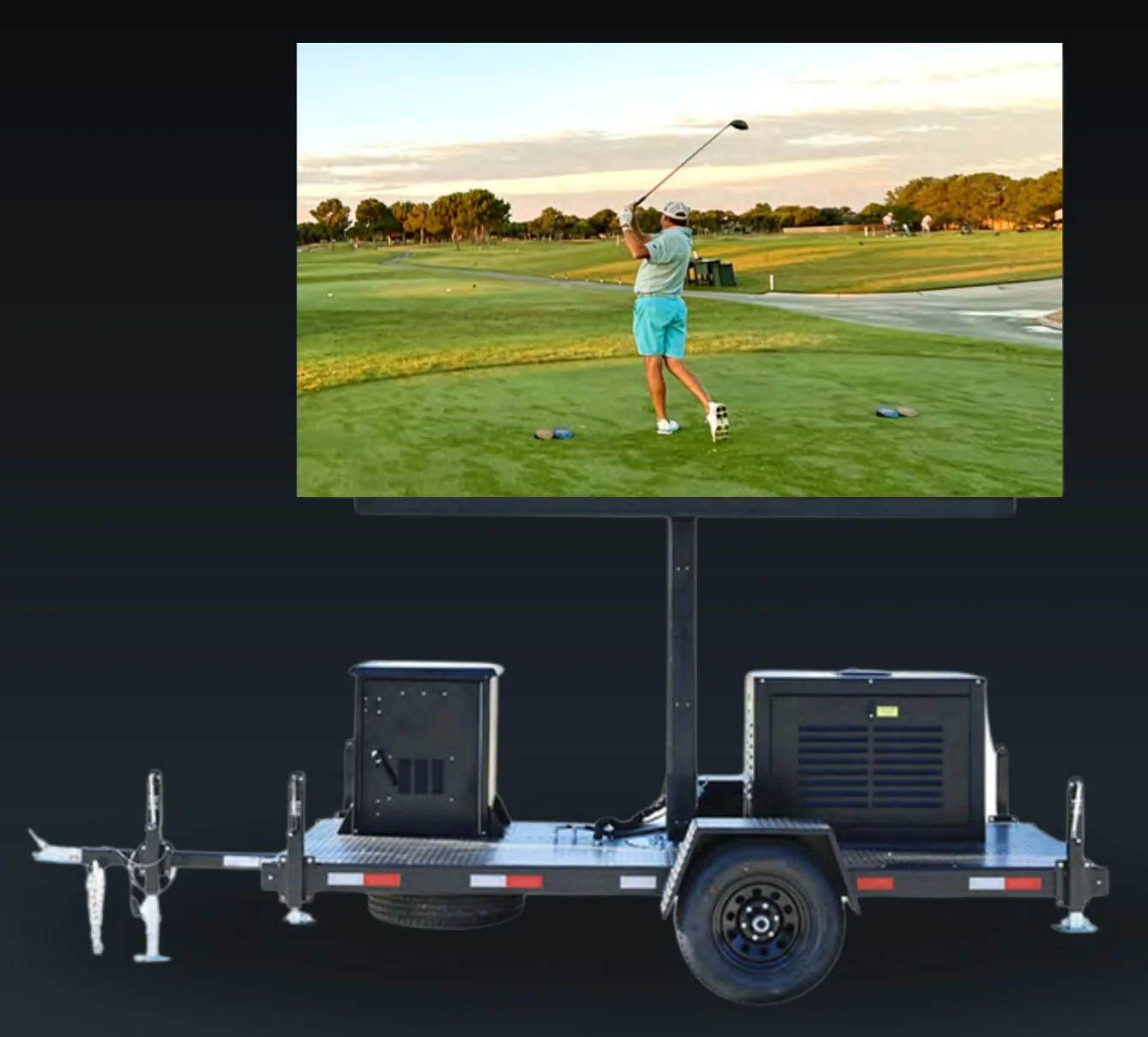

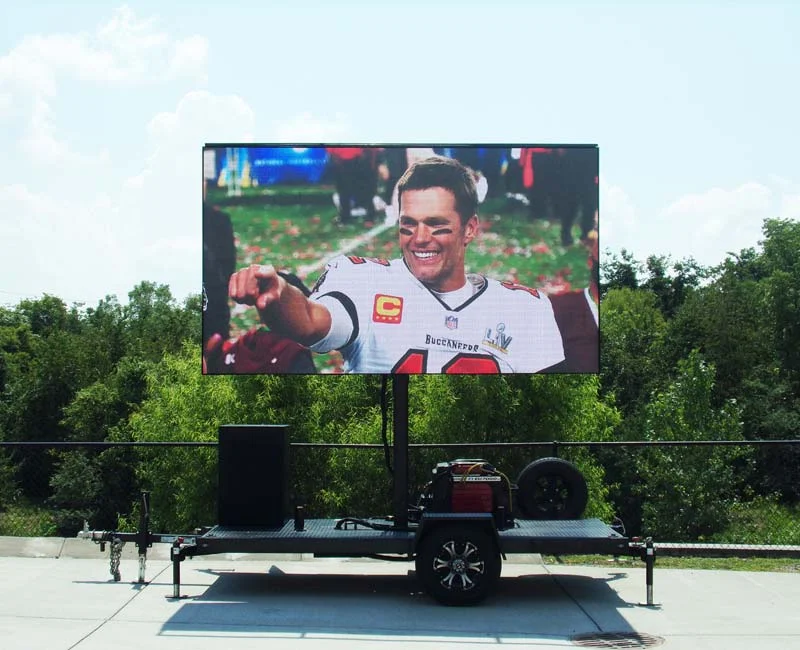

🎬 12' x 7' LED Screen
Best for: Backyard watch parties, graduations, school events and neighborhood movie nights. Big screen impact in a compact footprint.
- Recommended crowd: Up to 250 guests
- Clear viewing: Up to 200 feet
- Trailer footprint: About 17 ft long, 7 ft wide
- Venue power option: 30 amp RV plug, if you prefer we tie in

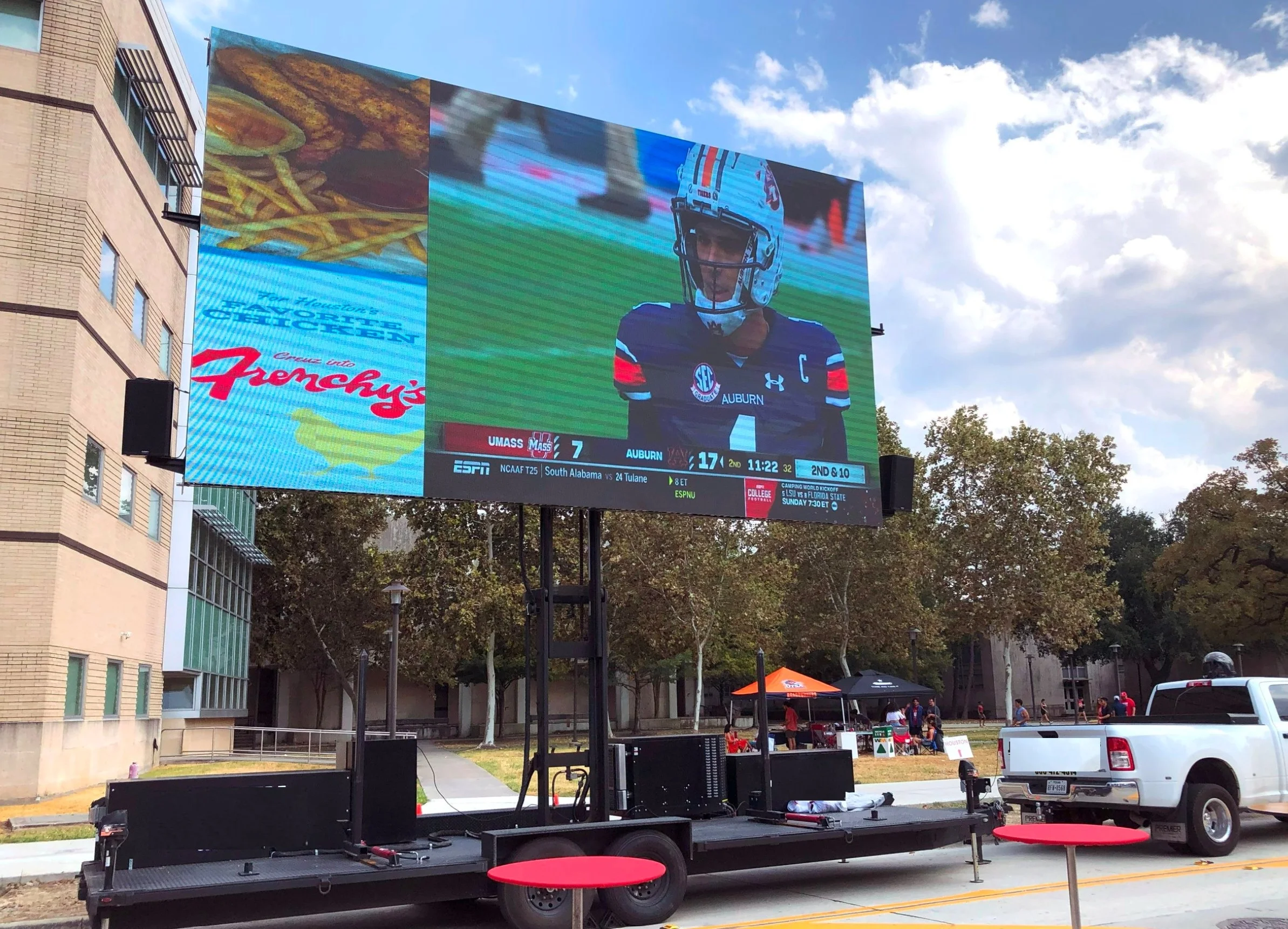

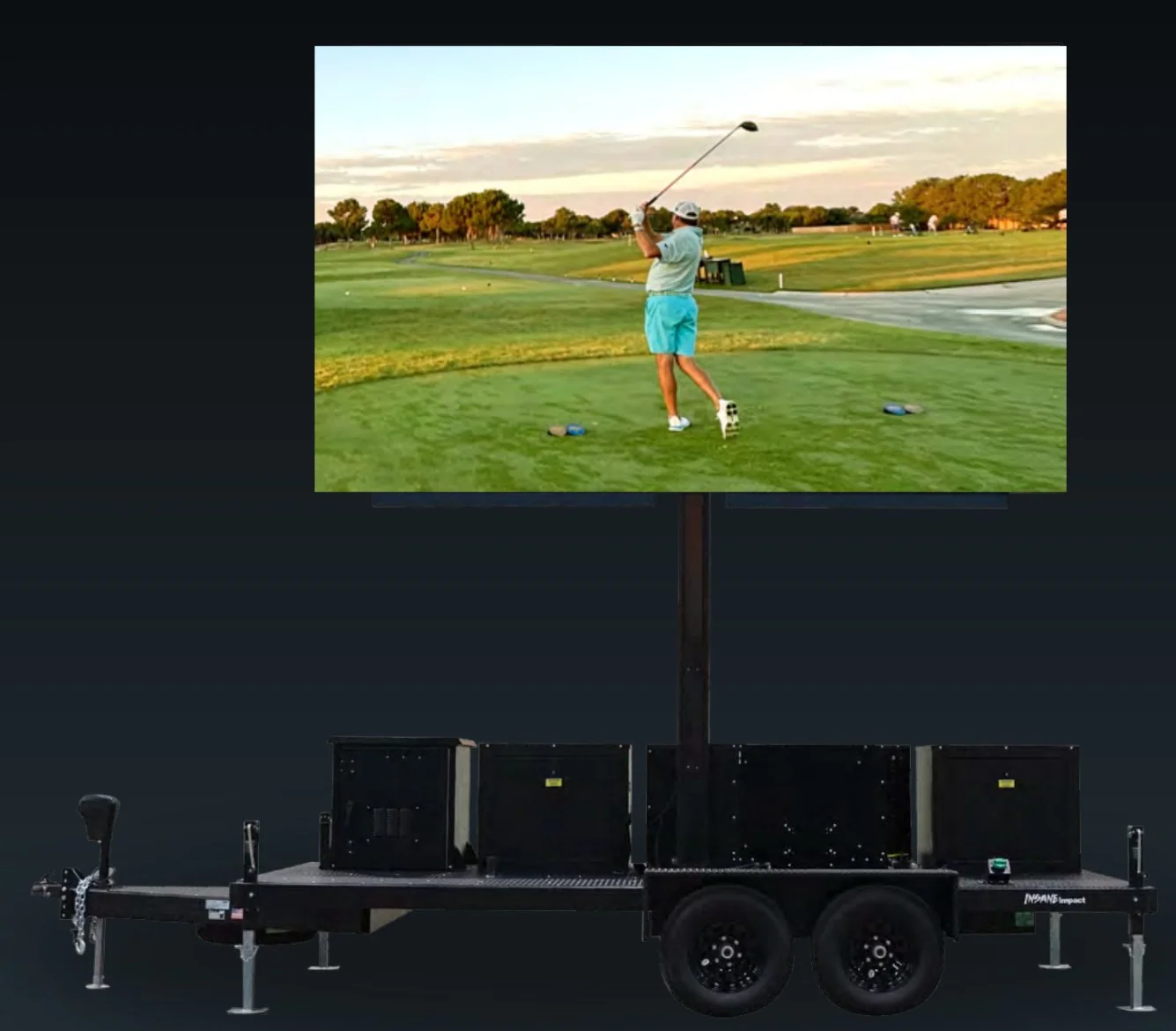

🏈 17' x 10' LED Screen
Best for: Corporate events, tailgates, school celebrations and community festivals. Our most popular screen, the sweet spot of size and wow factor.
- Recommended crowd: Up to 750 guests
- Clear viewing: Up to 300 feet
- Venue power option: 50 amp twist lock, if you prefer we tie in

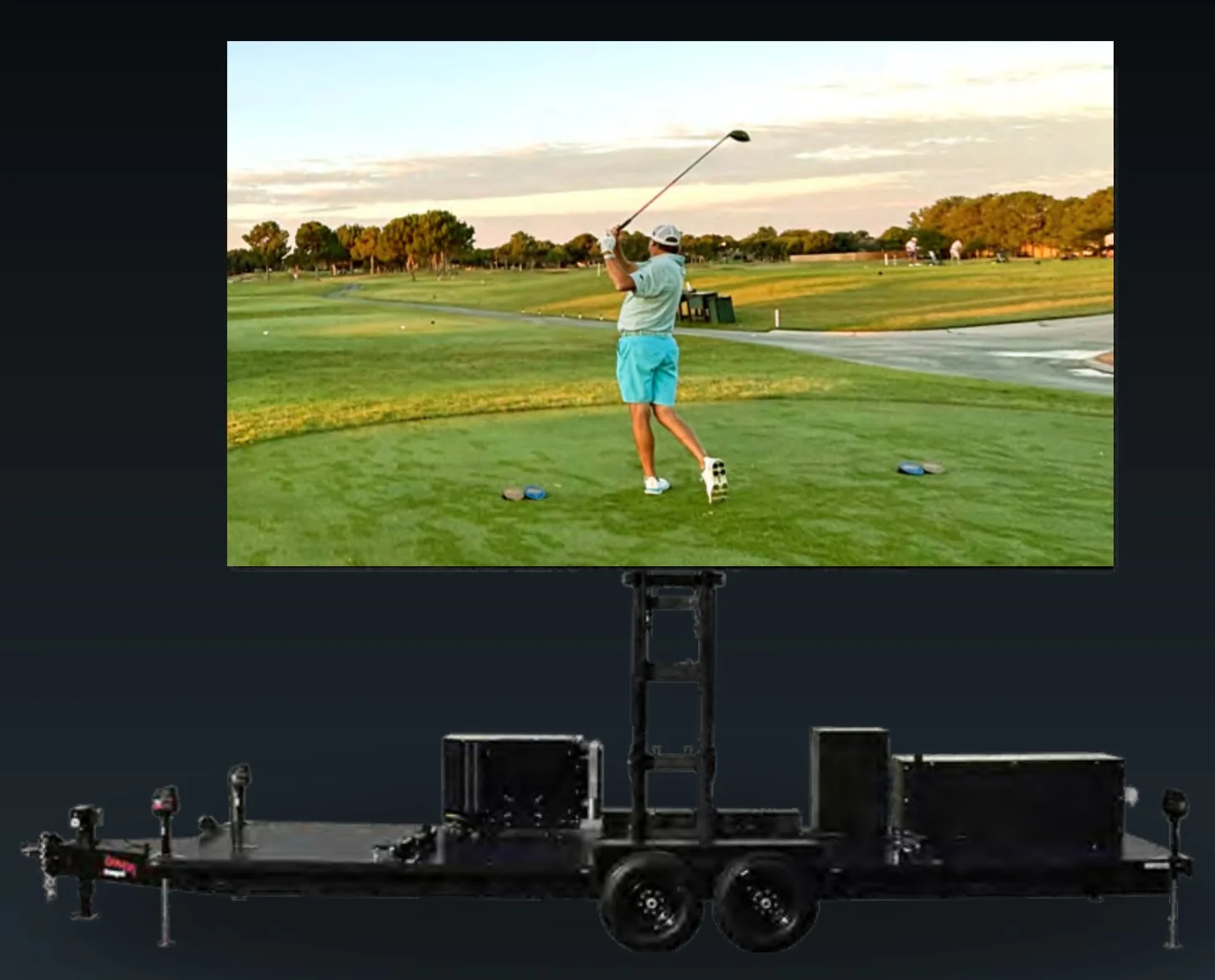

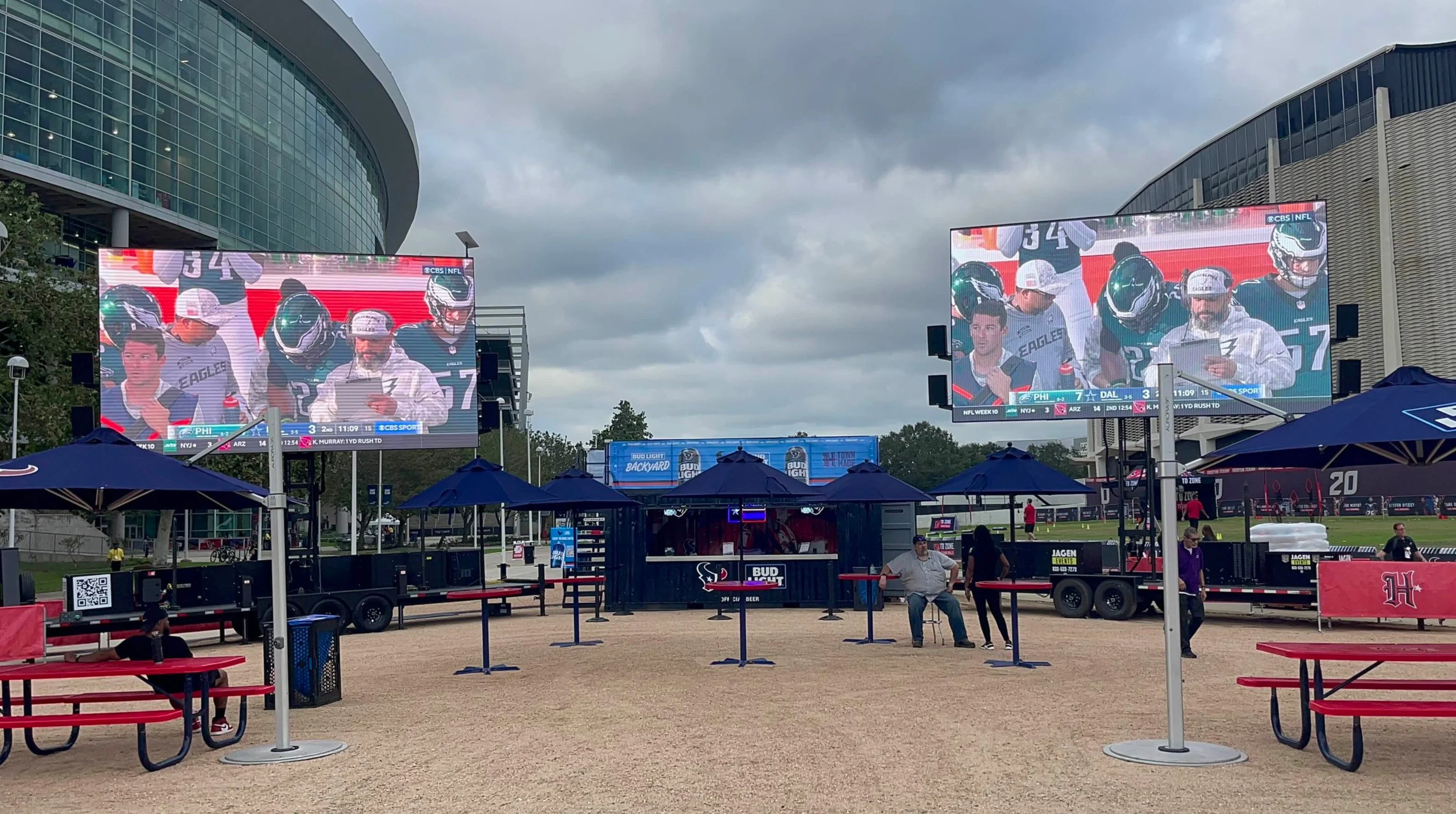

🏟️ 23' x 13' LED Screen
Best for: Concerts, festivals, marathons and stadium style viewing. Commands attention from across the field.
- Recommended crowd: 750+ guests
- Clear viewing: Up to 500 feet
- Venue power option: Standard cam lock connection, if you prefer we tie in
| Spec | 12' x 7' | 17' x 10' | 23' x 13' |
| Recommended crowd | Up to 250 | Up to 750 | 750+ |
| Clear viewing distance | 200 ft | 300 ft | 500 ft |
| Viewing angle | 160° | 160° | 160° |
| Pixel pitch | 3.9 mm | 3.9 mm | 3.9 mm |
| Daylight visible | Yes | Yes | Yes |
| Weatherproof | Yes | Yes | Yes |
| Wind rating | 45 mph | 45 mph | 45 mph |
| Power | Onboard generator | Onboard generator | Onboard generator |
| Built-in sound | Yes | Yes | Yes |
| Inputs | HDMI and SDI | HDMI and SDI | HDMI and SDI |
- Count your crowdUse the recommended crowd sizes above as your starting point.
- Check your farthest viewerCrowd spread matters as much as crowd size. If guests will be spread across a field, consider the next size up.
- Confirm your access pathThe trailer needs a clear path about 14 feet tall and 20 feet wide from the street to the screen spot. Not sure? Our LED specialist will walk through it with you.
📞 Ready for Your Quote?
Every LED event is priced for your date, location and needs. Tell us your event date, venue, crowd size and what you want to show, and our LED specialist will confirm the right screen. You will have your exact quote within a few hours, or first thing the next business morning.
- Walk the path before you bookLook for low branches, power lines, awnings and narrow gates between the street and your screen spot.
- Pick a fairly level spotGrass, gravel, asphalt or concrete all work.
- Add Starlink for live streamsVenue WiFi is the number one thing that fails on game day. Starlink keeps live sports and streams solid anywhere.
- Plan your content earlyKnow who is providing the video and how: streaming account, laptop, file or camera feed. We confirm it all on your pre-event call.
- Multi-day events need a secured areaIf the screen stays overnight, it needs a secured spot between event days.
- Ask your venue about permitsSome parks and cities require a permit or a certificate of insurance. Let us know early and we will help.
Ready to plan your event?
Your local Freedom Fun team handles delivery, setup and the whole experience. Free rescheduling for any reason, always.
